TRACK MASTER MILESCRAFT

The TrackMaster is an all-in-one, innovative, adaptable, T-Track table clamping solution that turns the Milescraft 4006 3” bench clamp into a universal clamp for use on T-Tracks of different sizes. The TrackMaster Universal T-Track Clamping Kit includes a Milescraft 3” Clamp and four different sizes of T-Bolt. Included T-Bolts quickly convert the bench clamp from ¼” T-tracks to 13mm, 23mm, 30mm, or 35mm tracks. In addition, the Universal T-Track Clamping Kit is compatible with any other existing brand or size of bench clamp that mounts with a 5/16” – 18 fastener.

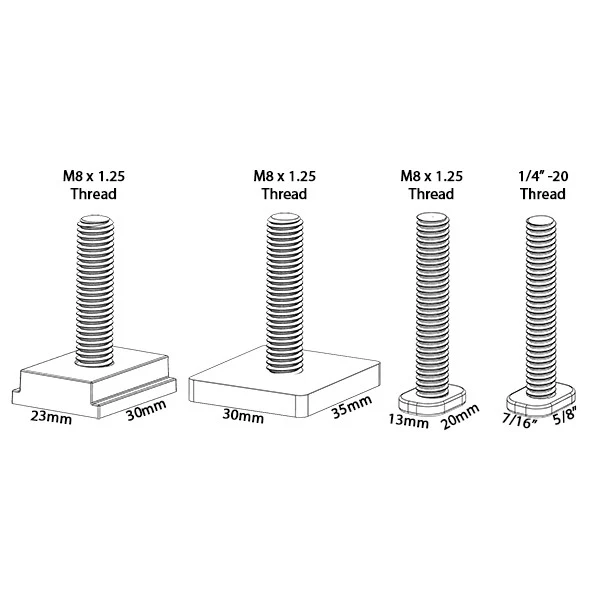

T-Bolts Included in the TrackMaster Kit:

¼” – 20 (7/16” x 5/8”)
M8 x1.25 (13mm x 20mm)
M8 x1.25 (23mm x 30mm)
M8 x1.25 (30mm x 35mm)
Heavy-Duty Clamp Base

The solid, heavy-duty base helps spread clamping pressure evenly across your tabletop, reducing track tear out.
Non-Marring Clamping

The non-marring base shoe prevents scratching and damage to your work table surface.

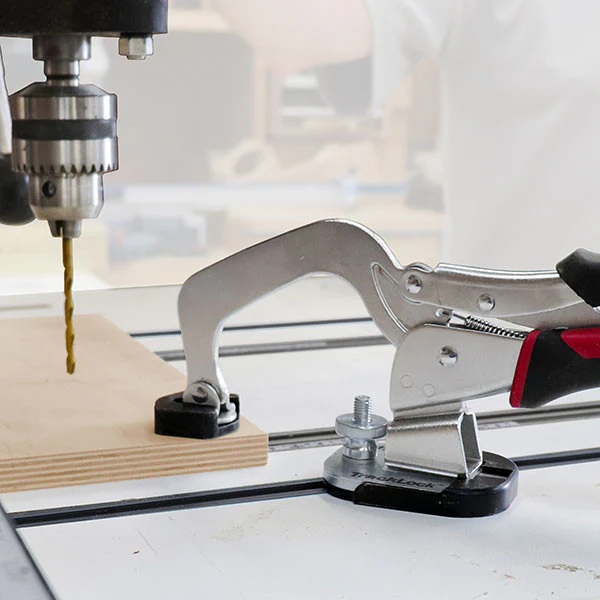

Ideal Applications:

Workbench
Drill Press
Router Tables
Table Saw

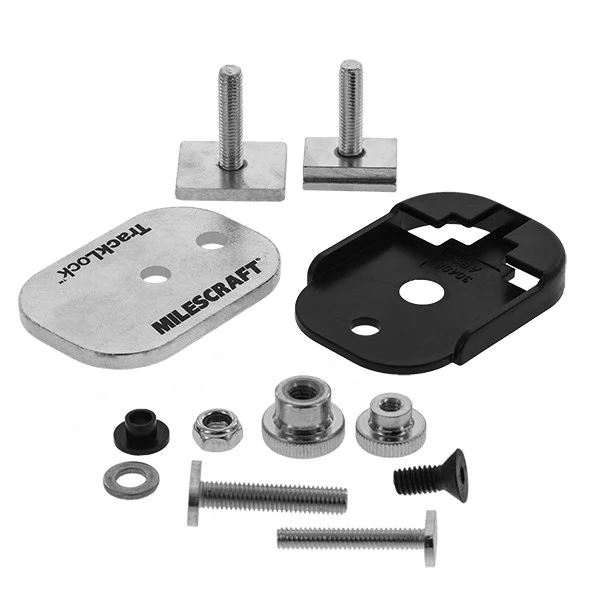

Includes

3" BenchClamp
1/4" - 20 (7/16" x 5/8") T-Bolt
M8 x 1.25 (13mm x 20mm) T-Bolt
M8 x 1.25 (23mm x 30mm) T-Bolt
M8 x 1.25 (30mm x 35mm) T-Bolt
Clamp Base Plate
Base Plate Shoe
1/4" - 20 Knob
M8 x 1.25 Knob
Mounting Hardware
